STRUCTURAL STEEL
Al Khaleel Building Material and Trading is a leading stockist of Structural steel in UAE.
| PRODUCT | SIZE | SPECIFICATION |
|---|---|---|

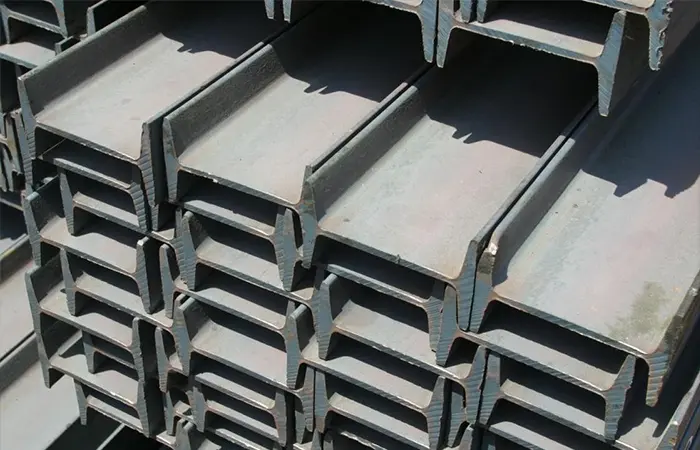

| Universal Beams | UB 127 x 76 TO 914 x 419 | EN 10025 S275 JR BS 4360 Gr. 43A |
| Universal Columns | UC152 x 152 TO 356 x 406 | EN 10025 S275 JR BS 4360 Gr. 43A |
| UPN Channel | 80 x 45 TO 300 x 100 | EN 10025 S275 JR |
| Equal Angles | 25mm x 25mm TO 250mm x 250mm | EN 10025 S275 JR |
| Unequal Angles | 100mm x 75mm TO 200mm x 100mm | EN 10025 S275 JR |
| Flat Bars | 25 x 3mm TO 250 x 25mm | EN 10025 S275 JR |
| Hot Rolled M.S Plate |
1.50M X 6M
2.00M X 6M
2.50M X 8M
2.50M X 10M
2.50M X 12M
3.05M X 12M
(Thickness range from 4mm to 80mm )
|
BS 4360 Gr. 43A EN 10025 S275 JR ASTM A36 ASTM A 283 Gr. C |
| Hot Rolled (High Tensile) Plates |
1.50M X 6M
2.00M X 6M
2.50M X 8M
2.50M X 10M
2.50M X 12M
3.05M X 12M
(Thickness range from 4mm to 80mm )
|
BS 4360 Gr. 50B EN 10025 S355 K2G3 EN 10025 S355 J2G3 |
| Hot Rolled (Pressure Vessel) Plates |
1.50M X 6M
2.00M X 6M
2.50M X 8M
2.50M X 10M
2.50M X 12M
3.05M X 12M
(Thickness range from 4mm to 80mm )
|
ASTM/ASME S 516 Gr.70 (Normalized) |
| Gratings | Black or Galvanized, Plain or Serrated | BS 4360 Gr. 43A Galvanizing as per BS729 or ASTMA 123 |
| Hollow Section | 16 x 16 TO 80 x 40 80 x 80 TO 400 x 200 (Thickness range from 1.2mm to 4.0mm) | JIS G3466 S355 J2H EN 10025 |
Stainless Steel Plates Prime Material
Specification : ASTM A240/ASME SA240, NACE MR 01-75, EN 10204- 3.1
| Type | Grade | Size Range | Size | Origin |
|---|---|---|---|---|
| Plates | 304/304L | 4' to 8' | 1 mm to20 mm | European/Brazil/South Africa |
| Plates | 316/316L | 4' to 8' | 1 mm to 50 mm | European/Brazil/South Africa |
| Plates | 304/304L | 2Mts. x 6Mts. | 5 mm to 10 mm | European |
| Plates | 316/316L | 2Mts. x 6Mts. | 4 mm to 12 mm | European |
Stainless Steel Round Bars
Specification : ASTM A276/ASME SA276, NACE MR 01-75, EN 10204- 3.1
| Type | Grade | Size Range | Size | Origin |
|---|---|---|---|---|
| Round Bars | 316/316L | 8 mm to 250 mm | Japan |
